Simulate Data From a Gompertz Change (Growth) Model

Generates longitudinal data from a random-coefficients Gompertz change model: each unit (a person, an animal, a tree) follows an S-shaped curve that, unlike the logistic, is not symmetric about its point of inflection, the parameters vary randomly across units, and each measurement adds level-one error. The deterministic part of the four parameter Gompertz curve is $$\mu(t) = \alpha \exp\left(-\exp(-\gamma (t - \beta))\right) + \zeta,$$ the parameterization of Kelley (2005, 2008), which generalizes the three parameter Gompertz of the literature (Winsor, 1932; Ratkowsky, 1983) by adding $\zeta$ so the lower asymptote is itself a modeled quantity rather than fixed at zero.

Usage

simulate_longitudinal_gompertz(
  n,
  target_times = NULL,
  fixed_parameters,
  time_range = NULL,
  occasions = NULL,
  time_distribution = "uniform",
  random_variances = 0,
  random_correlation = NULL,
  error_variance = NULL,
  reliability = NULL,
  error_structure = c("independent", "ar1", "compound_symmetry", "toeplitz"),
  error_correlation = NULL,
  timing_sd = 0
)

Arguments

n

A single positive integer, the number of units (persons, animals, trees, classrooms) whose trajectories are drawn, or a vector giving the number of units for each population, one entry per parameter vector in fixed_parameters.

target_times

Numeric vector of the nominal measurement times, one shared schedule for every unit. Give either this or time_range.

fixed_parameters

The population parameters c(alpha = , beta = , gamma = , zeta = ) (an unnamed length-4 vector is taken in that order), or a list of such vectors, one per population (distinct data generating parameter vectors):

alpha: The total change: the curve travels alpha units from the lower asymptote zeta to the upper asymptote $\alpha + \zeta$ (for $\gamma > 0$).
beta: The point of inflection on the time axis. The Gompertz inflection is early and asymmetric: it occurs where the curve passes through $\alpha / e + \zeta$, about 36.8% of the total change, so growth accelerates briefly and decelerates over a long approach to the ceiling.
gamma: The curvature: how sharply the curve rises through its inflection. Negative values flip the curve to decreasing.
zeta: The lower asymptote (for $\gamma > 0$). The intercept is $\phi = \alpha \exp(-\exp(\gamma \beta)) + \zeta$.

time_range

Alternative to target_times: c(lower, upper) bounds from which each unit draws its own measurement times, so no two units share a schedule (e.g., age in weeks at testing rather than a fixed grade). Requires occasions; with time_range, the level-one error must be a single error_variance with the default independent structure, and timing_sd does not apply.

occasions

With time_range: a single positive integer (every unit measured the same number of times) or c(min, max), from which each unit's number of measurement times is drawn uniformly.

time_distribution

Distribution of the unit-specific times over time_range; currently "uniform".

random_variances

Between-unit variances of (alpha, beta, gamma, zeta), a single number recycled to all four or a length-4 vector. Default 0. A named vector over any subset of the parameter names (e.g., c(beta = 1.2)) varies only those named and leaves the rest fixed.

random_correlation

Optional 4-by-4 correlation matrix among the random parameters; default uncorrelated.

error_variance, reliability, error_structure, error_correlation, timing_sd

The level-one error and assessment-time machinery, with the same meaning as in simulate_longitudinal_polynomial: specify exactly one of error_variance or reliability (solved here through the first-order delta method true-score variance; because the curve is nonlinear in its parameters, that approximation, and the reliability_by_occasion attribute with it, can drift from the realized variance ratio when the random variances are large relative to the mean curve); error_structure and error_correlation set the across-occasion error correlation; timing_sd jitters the actual assessment times.

Value

A long-format data.frame with columns id, population, occasion, target_time, time, true_score, and y, directly usable with plot_trajectories and nonlinear mixed-model fitters such as nlme::nlme(). Attributes carry the model, fixed_parameters, random_covariance, error_variance, error_covariance, reliability_by_occasion, and schedule ("shared" or "unit_specific").

Details

The choice between the Gompertz and the logistic is substantive, not cosmetic: both are S-shaped, but the logistic spends equal time approaching floor and ceiling while the Gompertz commits to an early inflection (36.8% of total change) followed by a long deceleration. Processes with rapid early gains and slow consolidation, common in learning and development, are natural Gompertz candidates. The Gompertz is the $\delta \rightarrow 0$ limit of the Richards curve (simulate_longitudinal_richards), which frees the inflection entirely (Kelley, 2005, 2008).

References

Kelley, K. (2005). Estimating nonlinear change models in heterogeneous populations when class membership is unknown: Defining and developing the latent classification differential change model (Doctoral dissertation). University of Notre Dame.

Kelley, K. (2008). Nonlinear change models in populations with unobserved heterogeneity. Methodology, 4(3), 97–112.

Ratkowsky, D. A. (1983). Nonlinear regression modeling: A unified practical approach. Marcel Dekker.

Winsor, C. P. (1932). The Gompertz curve as a growth curve. Proceedings of the National Academy of Sciences, 18(1), 1–8.

Author

Ken Kelley kkelley@nd.edu

Examples

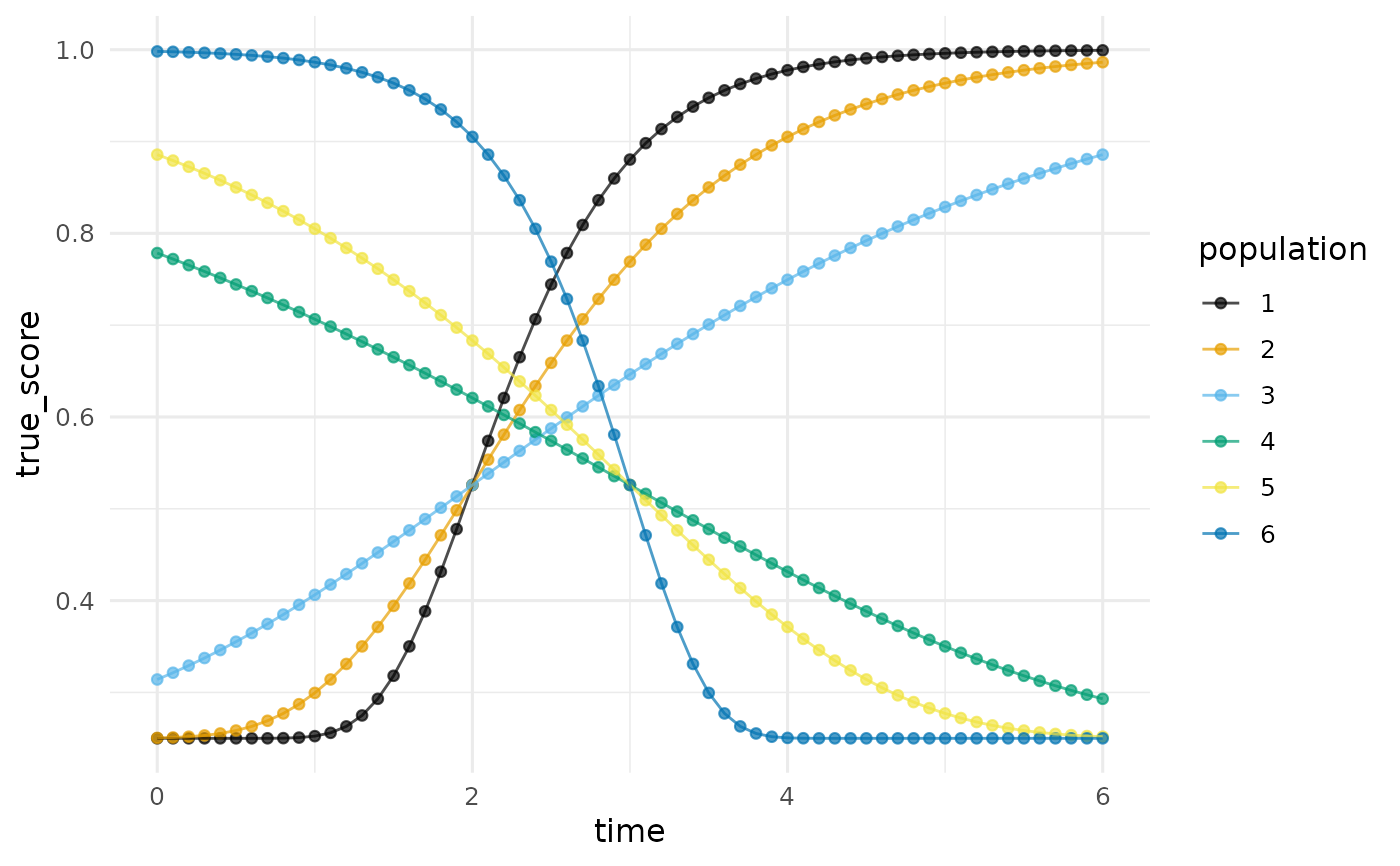

# The six-curve illustration from Kelley (2005): alpha = 0.75 and
# zeta = 0.25 throughout, so every curve crosses its inflection at
# the same height, 0.75 / exp(1) + 0.25, about 0.526. The three
# rising curves share the inflection time beta = 2 and differ only
# in curvature; the three falling curves share beta = 3. Each curve
# is its own population of size one, so a single call draws the whole panel.
panel <- simulate_longitudinal_gompertz(
  n = 1, target_times = seq(0, 6, by = 0.1),
  fixed_parameters = list(
    c(alpha = 0.75, beta = 2, gamma =  1.75, zeta = 0.25),
    c(alpha = 0.75, beta = 2, gamma =  1.00, zeta = 0.25),
    c(alpha = 0.75, beta = 2, gamma =  0.45, zeta = 0.25),
    c(alpha = 0.75, beta = 3, gamma = -0.35, zeta = 0.25),
    c(alpha = 0.75, beta = 3, gamma = -0.60, zeta = 0.25),
    c(alpha = 0.75, beta = 3, gamma = -2.00, zeta = 0.25)),
  error_variance = 0
)
plot_trajectories(panel, id = "id", time = "time",
                  outcome = "true_score", group = "population")

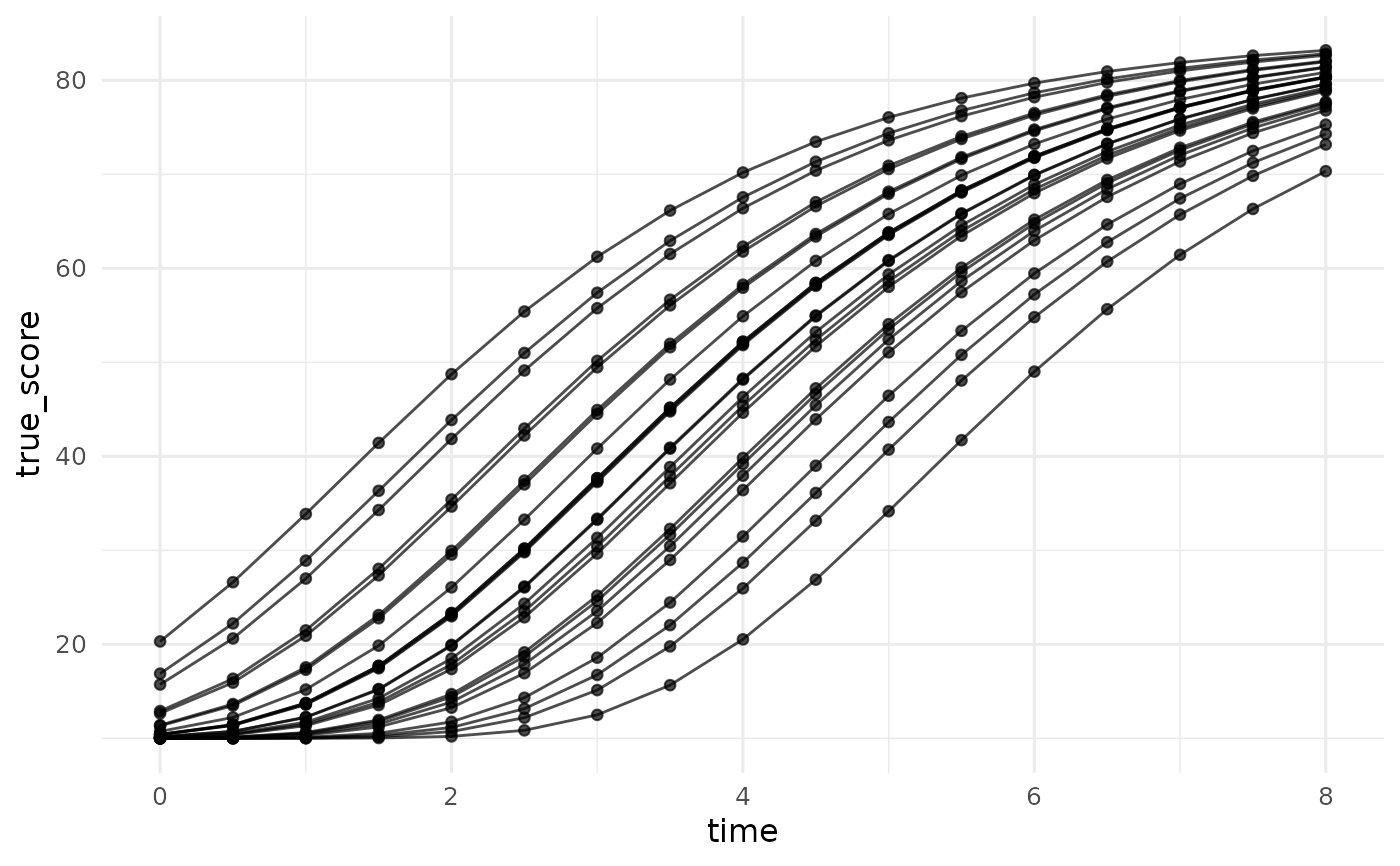

# Individual differences in a single parameter: only the inflection
# time varies (a named entry leaves every other variance at zero),
# so every trajectory shares the floor and the ceiling but reaches
# its fastest growth at its own moment.
set.seed(113)
d_beta <- simulate_longitudinal_gompertz(
  n = 25, target_times = seq(0, 8, by = 0.5),
  fixed_parameters = c(alpha = 75, beta = 3, gamma = 0.55, zeta = 10),
  random_variances = c(beta = 0.8), error_variance = 0
)
plot_trajectories(d_beta, id = "id", time = "time",
                  outcome = "true_score")

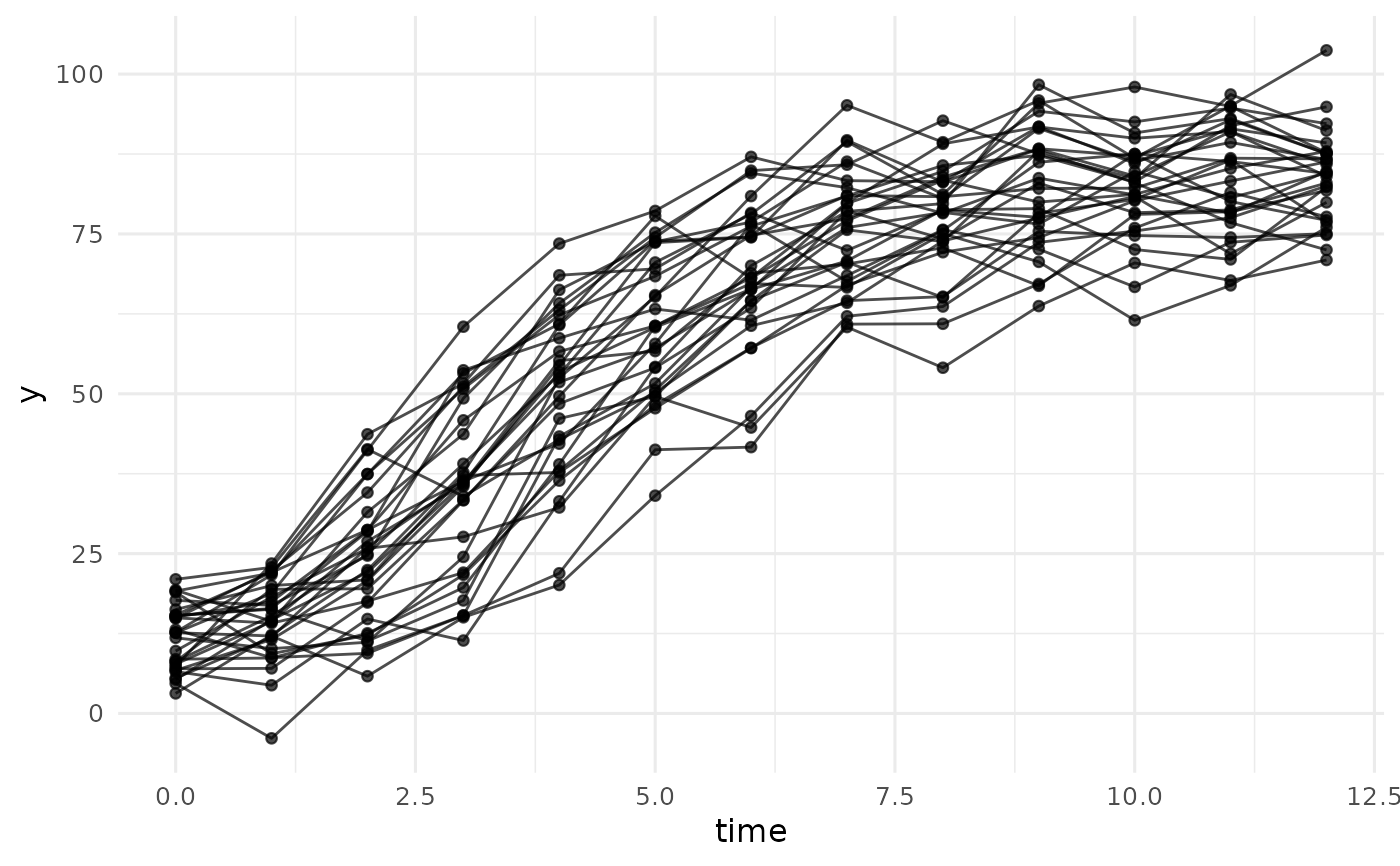

# Individual differences in every parameter at once, plus level-one
# error: the realistic sampling model.
set.seed(113)
d <- simulate_longitudinal_gompertz(
  n = 30, target_times = 0:12,
  fixed_parameters = c(alpha = 75, beta = 3, gamma = 0.55, zeta = 10),
  random_variances = c(alpha = 36, beta = 0.8, gamma = 0.01, zeta = 9),
  error_variance = 16
)
plot_trajectories(d, id = "id", time = "time", outcome = "y")
